Accessories for Modular Trailers           Flexibility for all sorts of loads

CHINA HEAVY LIFT offer optional extensive range of Accessories to enhance your professional transport solution, such as Gooseneck, Drop Deck, Spacer, High Girder Bridge, Vessel Bridge, Turntable

compatible Goldhofer THP/SL
compatible Goldhofer THP/SL
compatible Goldhofer THP/SL
compatible Goldhofer THP/SL
compatible Goldhofer THP/SL
compatible Goldhofer THP/SL
compatible Goldhofer THP/SL
compatible Goldhofer THP/SL
compatible Goldhofer THP/SL

Extendable spacer, Telescopic beam

List of accessories           Flexibility for all sorts of loads

TOWING EQUIPMENT

+ Draw bar, length 2m, 3m, 5m
+ Steering swivel arm for single widths
+ Center pulling device for parallel combination (1 + 1/2)
+ Center pulling device for parallel combination (1 + 1) side by side
+ Hydraulic gooseneck

LOADING EQUIPMENT

+ Drop deck
+ Vessel bridge
+ Intermediate spacer
+ Excavator deck
+ Extendable spacer, Telescopic beam
+ Girder bridge
+ Turntable

WIND POWER APPLICATION

+ Rotor Blade adapter, Blade Lifter
+ Tower adapter

GENERAL ACCESSORIES

+ Kohler diesel hydraulic power pack
+ Control panels
+ Trailer brake valve
+ Cable/Radio remote control
+ Export lights
+ Rear lighting bumper
+ Push coupling
+ Loading area mounting plate for power packs
+ Push rod
+ Control panel for self-tracking device
+ Cable remote control/Cable remote control for emergency operation
+ Drivers seat

POWER PACKS for SELF-PROPELLED MODULES

+ 103kw, 140HP
+ 155kw, 211HP
+ 250kw, 340HP
+ 360kw, 490HP

Advantages of CHINA HEAVY LIFT           Nothing is too heavy for our modules

Safety is always the priority. an innovative modular trailer concept come from our technology and experience, Chinaheavylift is the right vehicle for any application, no worry about Heavy

compatible Goldhofer THP/SL

High bending moment on the market
By reinforcing the main beam, the admissible bending moment has been optimized and increased. Thus, CHINAHEAVYLIFT Modular Trailer offer the high bending moment for high load reserves. The height of the beams has been maximized in such way that make a robust and durable construction with high bending moment, high concentrated load bearing capacity.

compatible Goldhofer THP/SL

Reinforced lamellar coupling
The coupling fins on CHINAHEAVYLIFT Modular Trailers have been reinforced. This counteracts the usual rapid wear of the fins, which is originated by the steering movements of the vehicle combination in combination with a locked coupling cylinder. Furthermore, the reinforced fins of Modular Trailers stabilise end-to-end coupled vehicle combinations when driving around bends.

compatible Goldhofer THP/SL

High oil tank volume
CHINAHEAVYLIFT Modular Trailers has an oil tank integrated into the vehicle main beam frame, for example, one 6 axle lines module have oil volume of 220 litres. This enables the operation of transport combinations of up to 25 axle lines without an additional tank.

compatible Goldhofer THP/SL

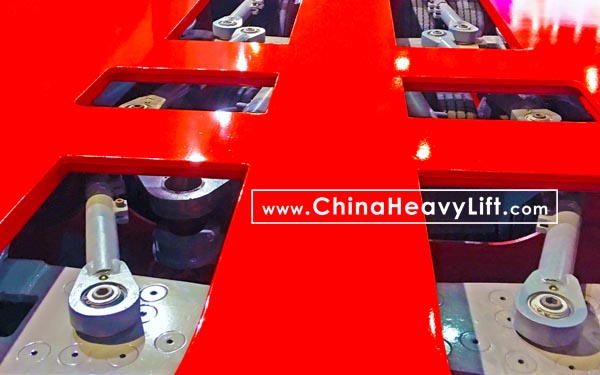

Easy accessible steering track rods
Unrestricted access to the steering track rods ensures easy removing and coupling, without the need for laborious threading of the track rods. Depending on the configuration, only one end of the track rod needs to be loosened for relinking in a loaded state.

compatible Goldhofer THP/SL

Tested fixing and lashing material
CHINAHEAVYLIFT Modular Trailers comes with fixing and lashing material which has been tested and accepted by official authorities like CE Certificate. The lashing rings can be used for load securing and crane loading of the vehicle. The hole pattern for the side-by-side coupling elements has not been changed, therefore existing equipment can still be used.

compatible Goldhofer THP/SL

End-to-end, Longitudinal coupling parts and hydraulic pins
The mechanical end-to-end coupling of two vehicles is performed via a hydraulically lockable lamellar coupling.
